Hydraulic Cylinder Seals for Dump Trucks and Heavy Machinery

Hydraulic cylinders are used in many types of heavy equipment, including dump trucks, excavators, loaders, cranes, agricultural machines, and industrial machinery. They are responsible for lifting, pushing, pulling, tipping, steering, and holding heavy loads under pressure. When a hydraulic cylinder works properly, the machine can operate smoothly and safely. But when the cylinder starts to leak or lose pressure, the problem is often related to worn or damaged seals.

For dump trucks and heavy machinery, hydraulic cylinder seals may look like small parts, but they are critical to the performance of the whole hydraulic system. A failed seal can cause oil leakage, weak lifting force, slow cylinder movement, unstable operation, and expensive downtime. In many cases, replacing the correct seal or seal kit can restore cylinder performance without replacing the complete cylinder.

Why Hydraulic Cylinder Seals Are Important?

A hydraulic cylinder uses pressurized oil to move the piston and rod. The seals inside the cylinder help keep the hydraulic oil in the correct area, maintain pressure, and prevent external dirt or moisture from entering the system. Without reliable seals, the cylinder cannot hold pressure properly, and the machine may lose power during operation.

Heavy equipment usually works in harsh environments. Dump trucks may carry heavy loads and repeat lifting cycles many times a day. Excavators and loaders often work in mud, dust, sand, rain, and high-impact conditions. These environments place extra stress on the sealing system. That is why choosing high-quality hydraulic seals is important for reducing leakage, protecting cylinder components, and extending machine service life.

Common Seals Used in Hydraulic Cylinders

A hydraulic cylinder is not sealed by only one part. It uses several different sealing components, and each one has a specific function. Rod seals help prevent hydraulic oil from leaking around the cylinder rod. Piston seals help maintain pressure inside the cylinder barrel. Wipers and scrapers remove dirt, dust, mud, and water from the rod surface before the rod moves back into the cylinder.

Wear rings and guide rings help support the piston and rod, reducing metal-to-metal contact inside the cylinder. Back-up rings are used in high-pressure applications to prevent seal extrusion. O-rings are widely used for static and dynamic sealing in grooves, covers, ports, and joints.Oil seals are also used in many machinery applications to retain lubricant and block contamination around rotating shafts.

When these components work together correctly, the hydraulic cylinder can maintain pressure, move smoothly, and resist contamination. If one part is damaged or installed incorrectly, the whole sealing system may fail.

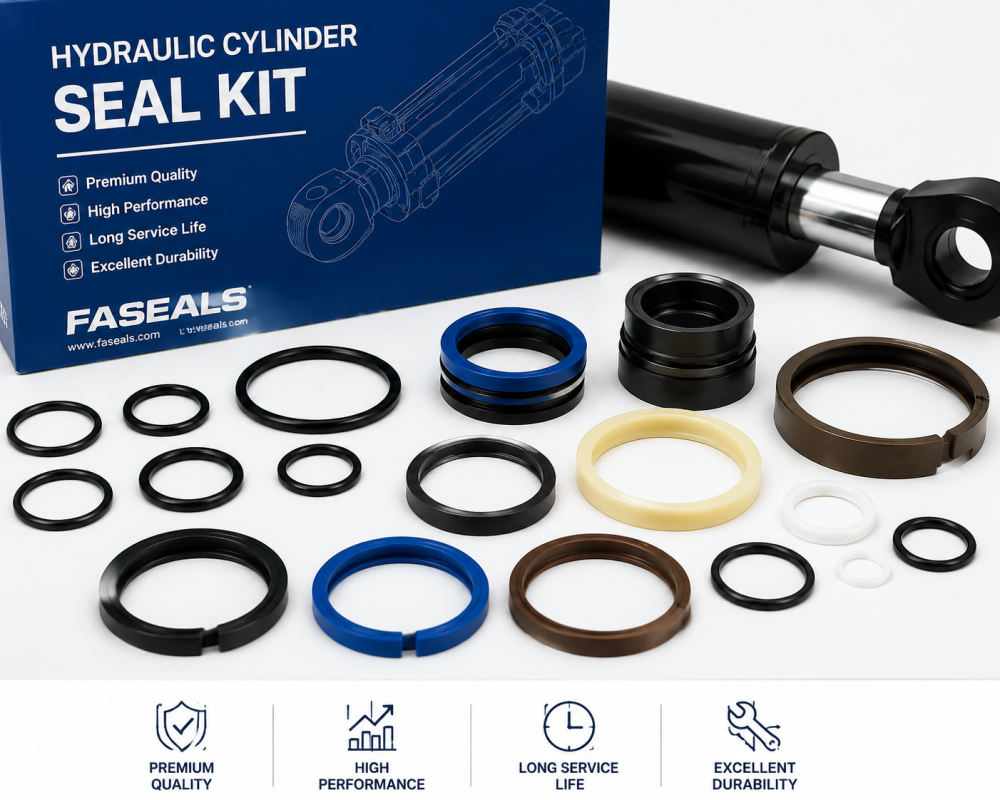

Seal Kits for Dump Trucks and Machinery

During cylinder repair, many maintenance teams prefer to use a complete seal kit instead of replacing only one visible damaged seal. A seal kit usually includes the main seals needed to rebuild a specific hydraulic cylinder. This helps reduce the risk of repeated leakage after repair

Dump truck hoist cylinders, excavator boom cylinders, arm cylinders, bucket cylinders, loader lift cylinders, tilt cylinders, crane cylinders, and agricultural equipment cylinders all rely on suitable seal kits. However, the correct kit must match the cylinder size, groove design, pressure range, material requirements, and working environment.

Using the wrong seal size or material can cause fast wear, oil leakage, or seal extrusion. Before ordering, it is important to confirm the machine model, cylinder position, part number, or seal dimensions. If the part number is not available, old seal samples, photos, or accurate measurements can help identify the right replacement.

Choosing the Right Seal Material

The material of a hydraulic seal has a direct impact on its service life. Different applications require different materials. Common sealing materials include PU, NBR, HNBR, FKM, EPDM, Silicone, PTFE, and filled PTFE compounds.

Polyurethane is commonly used for hydraulic seals because it offers good wear resistance and strength. NBR is often used for general oil resistance. FKM may be selected for high-temperature or chemical-resistant applications. PTFE materials are useful where low friction, special fluid compatibility, or high performance is required.

Before selecting a seal material, several factors should be considered, including working pressure, temperature, hydraulic fluid type, rod speed, surface condition, and contamination level. FASeals provides different sealing materials to support a wide range of hydraulic and industrial applications.

When Standard Seals Are Not Enough

Not every hydraulic cylinder uses a standard seal size. Some machines use older cylinders, repaired cylinders, modified rods, non-standard grooves, or special designs. In these cases, standard seals or common seal kits may not fit correctly.

FASeals offers custom machined seals for special sizes, obsolete seals, prototype applications, and urgent repair needs. Custom seals can be made according to samples, drawings, or measured dimensions. This is especially useful when the original seal kit is difficult to find or when the cylinder has been rebuilt or modified.

For customers repairing hydraulic cylinders, FASeals also provides related hydraulic cylinder components and seals helping create a more complete sealing solution.

Signs That Cylinder Seals Need Replacement

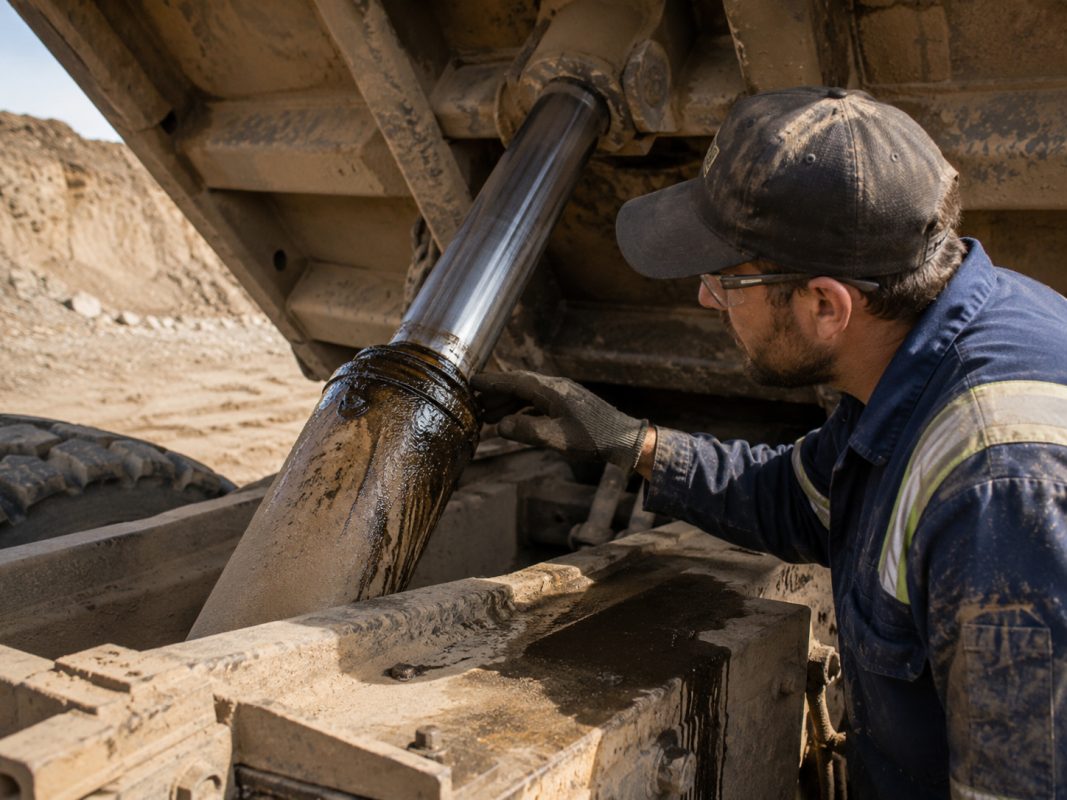

Hydraulic cylinder seal failure often shows warning signs before the cylinder completely stops working. Common signs include oil leaking around the rod, weak lifting force, slow cylinder movement, cylinder drift, poor holding pressure, contaminated hydraulic oil, and repeated leakage after repair.

If these problems appear, the cylinder should be inspected carefully. Replacing the seal without checking the rod surface, barrel condition, groove size, and guide parts may lead to another failure. A scratched rod, damaged groove, or worn guide ring can quickly damage a new seal.

How FASeals Supports Hydraulic Cylinder Repair?

FASeals supplies sealing products for dump trucks, excavators, loaders, cranes, agricultural equipment, industrial machinery, and other hydraulic systems. Our product range includes hydraulic seals, seal kits, O-rings, oil seals, machined seals, and related sealing solutions for different industries.

Whether you need a standard replacement seal, a complete cylinder repair kit, or a custom machined sealing solution, FASeals can help you choose the right product based on your application. You can explore more sealing solutions on our Seals Products page or learn more about the markets we serve from our Industries page.

Final Thoughts

Hydraulic cylinder seals are essential for keeping dump trucks and heavy machinery working safely and efficiently. The right seal helps prevent oil leakage, maintain pressure, protect cylinder parts, and reduce downtime. When selecting a seal or seal kit, it is important to consider the cylinder type, machine application, working pressure, material, and operating environment.

If you need help finding the correct hydraulic cylinder seal, seal kit, O-ring, oil seal, or custom machined seal, please request a quote from FASeals. Provide your machine model, cylinder position, part number, photos, samples, or dimensions, and our team will help check the suitable sealing solution for your equipment.
