SANY SY215 Seal Kit Guide: Types, Fitment, Failure Signs, and Buying Tips

The SANY SY215 is a widely used medium excavator for construction, earthmoving, roadwork, quarrying, utility installation, and other heavy-duty applications. Its hydraulic system operates the boom, arm, bucket, swing, travel, attachment, and control functions.

Although seals are small compared with the main hydraulic components, worn or damaged seals can cause oil leakage, cylinder drift, weak digging force, slow operation, contamination, and repeated equipment downtime.

When searching for a SANY SY215 seal kit, it is important to identify both the machine version and the hydraulic component being repaired. “SY215 seal kit” can refer to many different products, including a boom cylinder kit, bucket cylinder kit, center joint kit, control valve kit, hydraulic pump kit, or travel motor seal kit.

This guide explains the main seal kit applications on the SY215, common failure symptoms, kit contents, material options, and the information required to confirm correct fitment.

Understanding the SANY SY215 Excavator

The SY215 name is used for several excavator configurations in different markets. For example, the official SANY Global SY215C specifications list a 21.9-ton operating weight, 118 kW engine power, a 5.7 m standard boom, and a 2.9 m standard stick. Other regional versions, such as the SY215C LC, may use different engines, hydraulic specifications, operating weights, and working equipment. odel designations may include:

• SANY SY215
• SANY SY215C
• SANY SY215C LC
• SANY SY215H
• SANY SY215H Pro
• Other regional or emission-specific configurations

These machines may look similar but do not always use identical cylinders, seal sizes, pumps, valves, or motors.

For this reason, do not order a SANY SY215 seal kit based only on the excavator model name. Always confirm the machine serial number, component number, cylinder number, part number, or seal dimensions before purchasing.

Main SANY SY215 Seal Kit Applications

The SY215 uses seals in multiple hydraulic components. Each application requires a different kit.

1. Boom Cylinder Seal Kit

The boom cylinders lift and lower the excavator’s main boom. Because they support a large portion of the front attachment load, they must hold hydraulic pressure reliably.

Common signs of boom cylinder seal problems include:

• Hydraulic oil around the cylinder rod or gland
• The boom slowly lowering while the control is in neutral
• Reduced lifting force
• Uneven movement between the left and right boom cylinders
• Hydraulic oil contamination around the front equipment
• Scoring or oil film on the exposed piston rod

A typical boom cylinder seal kit may contain:

• Rod seal
• Piston seal
• Wiper or dust seal
• Buffer seal
• Wear rings
• Guide rings
• Backup rings
• O-rings
• Static gland seals

Because the SY215 normally uses two boom cylinders, confirm whether the quotation is for one cylinder kit or one complete pair.

2. Arm or Stick Cylinder Seal Kit

The arm cylinder moves the stick toward or away from the machine. It experiences frequent direction changes and heavy digging loads.

Possible symptoms of arm cylinder seal failure include:

• Arm drift under load
• Oil leakage around the gland
• Weak pulling force
• Jerky or inconsistent arm movement
• Pressure loss during digging
• Excessive hydraulic oil temperature

A leaking arm cylinder does not always mean that the rod seal is the only damaged part. Internal leakage across the piston seal can cause loss of holding force without producing visible external leakage.

When rebuilding the cylinder, inspect the piston rod, barrel, gland, piston, wear rings, and seal grooves before installing the new kit.

For more information about the functions of each cylinder seal, read the Hydraulic Cylinder Seals Guide.

3. Bucket Cylinder Seal Kit

The bucket cylinder operates continuously during digging, loading, grading, and material handling. It is exposed to impact, dust, mud, abrasive material, and changing loads.

Common bucket cylinder problems include:

• Bucket curl becoming weak
• Bucket opening or closing slowly
• Visible leakage from the rod end
• Bucket drifting after the joystick is released
• Hydraulic oil collecting around the gland
• Damaged or cracked wiper seal
• Dirt entering around the piston rod

The bucket cylinder seal kit usually includes the primary rod and piston seals together with wipers, wear rings, backup rings, and static O-rings.

A damaged wiper should not be ignored. Once mud, sand, or metal particles enter the cylinder, they can damage the rod seal, rod surface, gland, and cylinder bore.

4. Center Joint or Swivel Joint Seal Kit

The center joint transfers hydraulic oil between the excavator’s upper structure and undercarriage while allowing the upper structure to rotate.

A SY215 center joint seal kit may be needed when the machine develops:

• Hydraulic oil leaking from the center joint
• Weak or uneven travel performance
• One travel side operating differently from the other
• Cross-port leakage inside the swivel joint
• Oil appearing around the center of the machine
• Travel problems that change when the upper structure rotates

A center joint kit may contain O-rings, rotary seals, backup rings, and other sealing elements specific to the swivel assembly.

Before replacing the seals, inspect the center joint shaft and housing for scoring, corrosion, excessive clearance, or groove damage. New seals may fail quickly when installed on a severely worn surface.

5. Main Control Valve Seal Kit

The main control valve distributes hydraulic oil to the boom, arm, bucket, travel, swing, and auxiliary circuits.

The control valve contains many O-rings, backup rings, spool seals, port seals, and section seals. A complete control valve seal kit is different from an individual section repair kit.

Possible control valve seal problems include:

• External oil leakage between valve sections
• Oil leakage around plugs or covers
• Internal leakage and weak functions
• Hydraulic drift
• Multiple functions interfering with each other
• Slow response from one hydraulic circuit
• Oil leakage around solenoid or relief valve areas

Before ordering, confirm whether you need:

• Complete main control valve seal kit
• Boom valve section kit
• Arm valve section kit
• Bucket valve section kit
• Travel section kit
• Relief valve O-ring kit
• Solenoid valve seal kit
• Port and plug O-rings

Photos of the valve identification plate are especially useful because different production batches may use different valve assemblies.

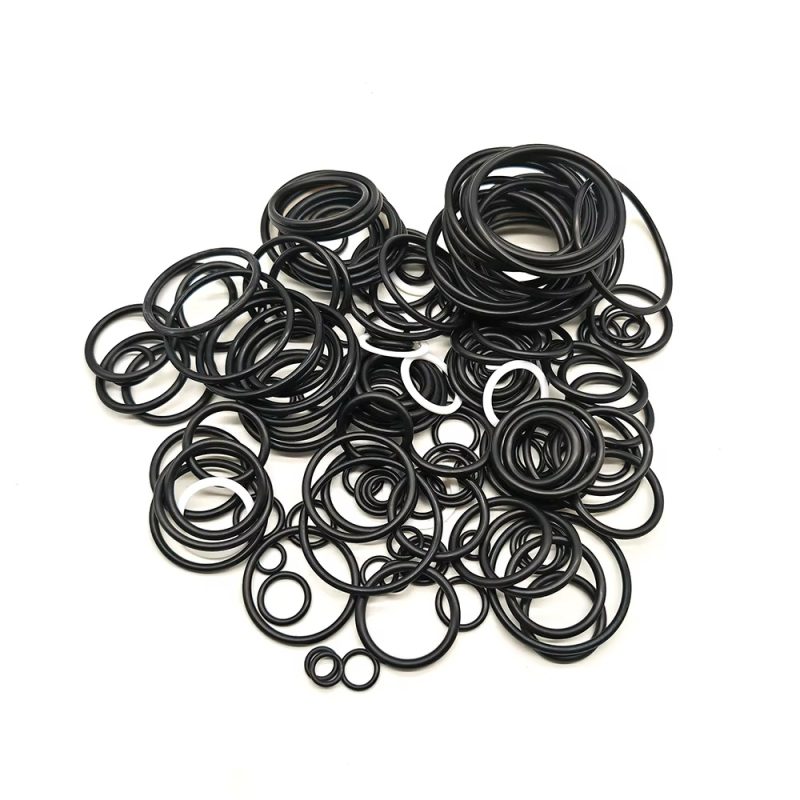

6. Main Hydraulic Pump Seal Kit

The main pump supplies pressurized hydraulic oil to the excavator’s working system.

A hydraulic pump seal kit may include:

• Shaft oil seal
• O-rings
• Backup rings
• Housing seals
• Regulator seals
• Control piston seals
• Flange seals
• Port seals

Possible pump seal failure symptoms include:

• Oil leakage around the input shaft
• Leakage between pump housing sections
• Leakage around the regulator
• Air entering the hydraulic system
• Oil around pump ports or covers

A seal kit can repair leakage caused by damaged sealing elements, but it cannot correct worn pistons, cylinder blocks, valve plates, bearings, shafts, or housings.

When the pump is noisy, produces metal particles, overheats, or cannot build pressure, the complete pump should be inspected before ordering only a seal kit.

7. Swing Motor Seal Kit

The swing motor rotates the upper structure of the excavator. Its sealing system may include a shaft seal, housing O-rings, brake piston seals, backup rings, and port seals.

Common warning signs include:

• Oil leaking below the swing motor
• Hydraulic oil entering the swing gearbox
• Swing operation becoming weak or irregular
• External leakage around the motor housing
• Swing brake problems
• Abnormal hydraulic oil loss

Hydraulic oil found inside the swing reduction gearbox may indicate a failed motor shaft seal, but the motor shaft and bearing condition should also be inspected.

8. Travel Motor and Final Drive Seal Kits

The travel system includes hydraulic travel motors and mechanical final drives. These assemblies use different types of seals.

Possible kits include:

• Travel motor hydraulic seal kit
• Travel motor brake piston seal kit
• Floating face seal
• Final drive oil seal
• Housing O-ring kit
• Port seal kit

Common symptoms include:

• Hydraulic oil leaking from the travel motor
• Gear oil leaking near the sprocket
• Hydraulic oil mixing with final drive oil
• One travel side becoming weak
• Oil appearing around the motor housing
• Final drive oil level increasing unexpectedly

Before ordering, determine whether the leakage comes from the hydraulic motor, the reduction gearbox, the hose connection, or the floating seal area.

9. Track Adjuster and Recoil Cylinder Seal Kit

The track adjuster maintains correct track tension. Grease leakage or seal failure may prevent the track from remaining properly tensioned.

Common symptoms include:

• Track repeatedly becoming loose
• Grease leaking from the adjuster cylinder
• Adjuster piston retracting
• Damaged dust seal
• Corrosion or scoring on the adjuster rod

A track adjuster kit may contain piston seals, rod seals, wipers, backup rings, and O-rings. However, a damaged cylinder surface or bent rod may require additional repair.

10. Pilot Valve and Joystick Seal Kits

Pilot valves use lower hydraulic pressure to control the main valve functions. Seal problems may cause oil leakage around the joystick, foot pedal, pilot valve, or control lever.

Potential symptoms include:

• Oil around the joystick base
• Slow control response
• A function continuing after the joystick returns to neutral
• Inconsistent pilot pressure
• Leakage from pedal control valves

Confirm the pilot valve manufacturer, assembly number, and machine serial number because valve designs can vary.

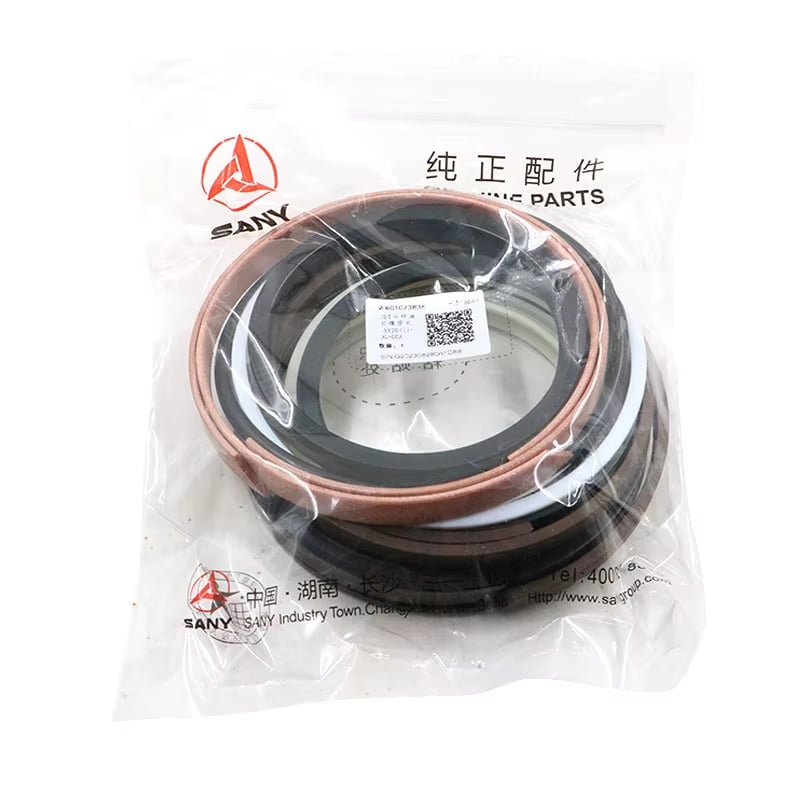

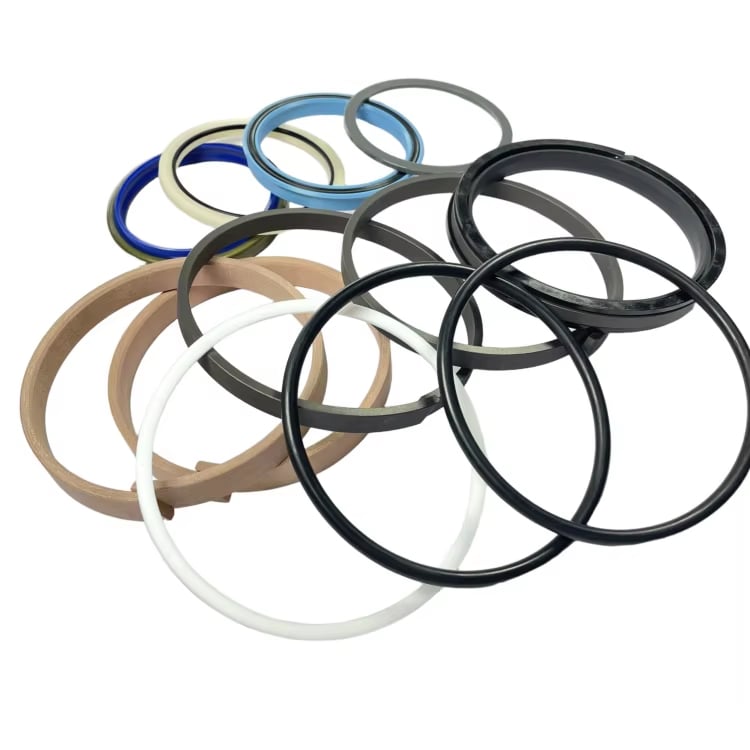

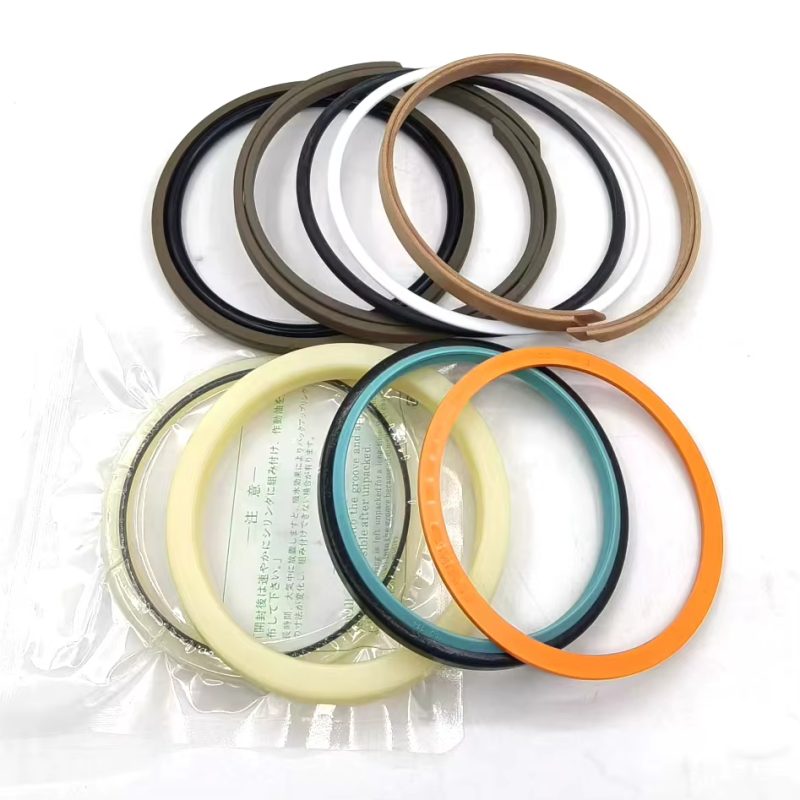

What Is Included in a SANY SY215 Cylinder Seal Kit?

The contents depend on the cylinder design, but a complete hydraulic cylinder seal kit may include the following components.

Seal type	Main function
Rod seal	Prevents hydraulic oil from escaping along the piston rod
Piston seal	Separates pressure between the two sides of the piston
Wiper seal	Removes dirt, mud, water, and debris from the rod
Buffer seal	Protects the rod seal from pressure spikes
Wear ring	Guides the piston or rod and prevents metal contact
Backup ring	Supports another seal and reduces extrusion
O-ring	Seals static connections, glands, plugs, and covers
Guide ring	Maintains alignment during cylinder movement
Static seal	Prevents leakage between fixed components

The number, profile, material, and size of these seals must match the original cylinder design. Similar-looking seals are not automatically interchangeable.

FASeals supplies standard hydraulic seals, complete seal kits, individual sealing components, and replacement solutions for heavy equipment repair.

How to Identify the Correct SANY SY215 Seal Kit

Correct identification is the most important part of ordering.

Check the Complete Machine Model

Provide the full model designation rather than only “SY215.”

For example:

• SY215C
• SY215C LC
• SY215H
• SY215H Pro

Provide the Machine Serial Number

The serial number helps distinguish production years, regional configurations, and component changes.

A clear photo of the machine identification plate is better than a manually typed number because it reduces transcription errors.

Identify the Hydraulic Component

State exactly which component is being repaired:

• Boom cylinder
• Arm cylinder
• Bucket cylinder
• Center joint
• Main control valve
• Main hydraulic pump
• Swing motor
• Travel motor
• Track adjuster
• Pilot valve

“Complete SY215 seal kit” is not specific enough because there is no single kit covering every hydraulic component on the machine.

Find the Cylinder or Component Number

Check the cylinder barrel, gland, valve plate, pump housing, motor plate, parts manual, or previous repair records.

Useful information includes:

• Cylinder assembly number
• Seal kit part number
• Hydraulic pump model
• Control valve model
• Swing motor model
• Travel motor model
• Center joint number

Send Photos of the Old Seals

When the part number is unavailable, send clear photos showing:

• Complete seal arrangement
• Seal profile
• Lip direction
• Color and material appearance
• Old wiper
• Piston seal
• Rod seal
• Wear rings
• O-rings
• Cylinder gland and piston

Place the seals next to a ruler or caliper where possible.

Measure the Cylinder and Seal Grooves

For non-standard or previously repaired cylinders, provide:

• Rod diameter
• Cylinder bore diameter
• Gland inside diameter
• Piston outside diameter
• Groove diameter
• Groove width
• Seal height
• Old seal inside diameter
• Old seal outside diameter
• Cross-section or thickness

Measurements should be taken with a suitable caliper or micrometer. Do not rely only on an old rubber seal because it may have stretched, hardened, swollen, or permanently deformed.

When an original kit is unavailable, FASeals can produce custom machined seals according to the required dimensions and seal profile.

Choosing the Right Seal Material

The correct seal profile is only part of the selection process. Material affects wear resistance, oil compatibility, friction, temperature capability, elasticity, and resistance to extrusion.

Common materials include:

Polyurethane

Polyurethane is frequently used for excavator rod seals, wipers, U-cups, and other high-wear positions. It offers strong abrasion and tear resistance for mobile hydraulic equipment.

NBR

NBR is commonly used for O-rings and static seals in petroleum-based hydraulic oil systems. It provides practical oil resistance for many standard applications.

PTFE

PTFE and filled PTFE materials may be used for piston seals, step seals, backup rings, and low-friction applications.

FKM

FKM may be selected for elevated temperatures or working conditions requiring stronger heat and chemical resistance.

Wear-Resistant Composite Materials

Guide rings and wear rings may use filled PTFE, nylon, phenolic fabric, polyester composites, or other engineered materials.

Material selection should consider:

• Hydraulic fluid type
• Operating temperature
• Working pressure
• Rod speed
• Dust and mud exposure
• Pressure spikes
• Surface condition
• Required service life

Learn more about available options on the FASeals sealing materials page.

Common Signs That an SY215 Seal Kit May Be Needed

Inspect the hydraulic system when any of the following symptoms appear:

1. Oil leaking around a cylinder rod
2. Boom, arm, or bucket drifting under load
3. Reduced lifting or digging force
4. Oil leakage from the center joint
5. Grease leakage from the track adjuster
6. Oil around the hydraulic pump shaft
7. Leakage between control valve sections
8. Hydraulic oil entering a swing or travel gearbox
9. Damaged or missing cylinder wiper
10. Jerky or inconsistent cylinder movement
11. Hydraulic oil consumption increasing
12. Repeated leakage after a previous repair

These symptoms can indicate seal damage, but they may also result from worn metal surfaces, valve leakage, excessive clearance, contamination, pressure problems, or incorrect installation.

Diagnose the complete component before replacing seals.

Why a New Seal Kit May Leak After Installation

A new SANY SY215 seal kit can fail early when the underlying cause is not corrected.

Common reasons include:

• Incorrect kit or seal dimensions
• Seal installed in the wrong direction
• Lip damaged during installation
• Sharp groove edges cutting the seal
• Piston rod scoring
• Cylinder barrel damage
• Worn gland or piston
• Incorrect seal material
• Contaminated hydraulic oil
• Damaged wear rings
• Excessive system pressure
• Pressure spikes
• Poor surface finish
• Twisted or stretched seals
• Old O-rings reused during assembly

Before assembly, clean all components and inspect the rod, bore, grooves, piston, gland, and guide surfaces.

Installation cones, sleeves, rounded tools, and suitable hydraulic assembly lubricant can help reduce seal damage. Avoid using sharp screwdrivers directly against sealing lips.

Information to Send When Requesting a Quote

To receive an accurate quotation, provide as much of the following information as possible:

• Machine brand: SANY
• Complete excavator model
• Machine serial number
• Required component
• Cylinder or component number
• Seal kit part number, when available
• Quantity
• Photos of the machine plate
• Photos of the hydraulic component
• Photos of the old seals
• Rod, bore, and groove dimensions
• Delivery country
• Required delivery time

Example inquiry:

We need one arm cylinder seal kit for a SANY SY215C excavator. Model or Part number: ______.Machine serial number: ______. Please confirm the kit contents, availability, price, and delivery time. Photos are attached.

You can submit this information through the FASeals request-a-quote form.

Why Choose FASeals for SANY SY215 Seal Kits?

FASeals supplies sealing products for excavators, loaders, bulldozers, cranes, agricultural machinery, industrial equipment, and other hydraulic applications.

Available product options include:

• Boom cylinder seal kits
• Arm cylinder seal kits
• Bucket cylinder seal kits
• Center joint kits
• Control valve seal kits
• Hydraulic pump seal kits
• Swing motor seal kits
• Travel motor seal kits
• Track adjuster seal kits
• O-rings and backup rings
• Rod and piston seals
• Wipers and buffer seals
• Wear rings and guide rings
• Custom machined seals

Customers can browse the hydraulic cylinder seal kit category or contact FASeals for help identifying a kit that is not listed online.

Frequently Asked Questions

Can I order a seal kit using only the model SY215?

It is not recommended. The SY215 family includes different versions and production configurations. Provide the complete model, serial number, component number, or dimensions whenever possible.

Are the boom, arm, and bucket cylinder kits the same?

No. Each cylinder normally has different bore, rod, groove, and seal dimensions. They require separate kits.

Does one boom cylinder seal kit repair both boom cylinders?

Normally, one kit repairs one cylinder unless the product description specifically states that it contains two sets. Confirm the quantity before ordering.

Can I replace only the leaking rod seal?

It is possible in some situations, but once a cylinder is disassembled, replacing the complete set of rod, piston, wiper, static, and guide components is usually more practical. Other seals may already be worn or hardened.

What should I do when the cylinder number is missing?

Send the machine serial number, cylinder photos, old seal samples, and accurate rod, bore, piston, gland, and groove measurements.

Can FASeals produce a non-standard SY215 seal?

Yes. Custom sealing solutions may be produced when the cylinder has been modified, the original kit is unavailable, or the groove dimensions no longer match a standard kit.

Does a new seal kit repair a scratched piston rod?

No. A new seal may leak again when installed against a deeply scratched, pitted, corroded, bent, or incorrectly finished rod. The rod should be repaired or replaced before assembly.

How can I contact FASeals?

Send the machine information, part number, photos, measurements, and required quantity through the FASeals contact page.

Conclusion

The correct SANY SY215 seal kit depends on more than the excavator model. Boom cylinders, arm cylinders, bucket cylinders, center joints, pumps, control valves, swing motors, travel motors, and track adjusters all require different sealing components.

Before ordering, confirm the complete machine model, serial number, hydraulic component, assembly number, and kit quantity. When identification numbers are unavailable, detailed photos and accurate measurements can help determine the required seal profile and dimensions.

FASeals supplies seal kits, hydraulic seals, O-rings, wear rings, wipers, backup rings, and custom machined sealing solutions for SANY excavators and other heavy equipment.

Request a quote from FASeals and include your SY215 model, serial number, component information, photos, and required quantity for fitment assistance.
